Product Overview
The ChillWaves Brass Compression Tube Fitting, 1/4" OD x 1/4" NPT Female Compression Union Connector(10-PACK) offers what gift giving demands: practical reliability and long-term value. Constructed using Brass, measuring 1/4" OD x 1/4" FNPT, available in Yellow. Notable features include size tube and tube od, contributing to its thoughtfully designed character.
Key Features

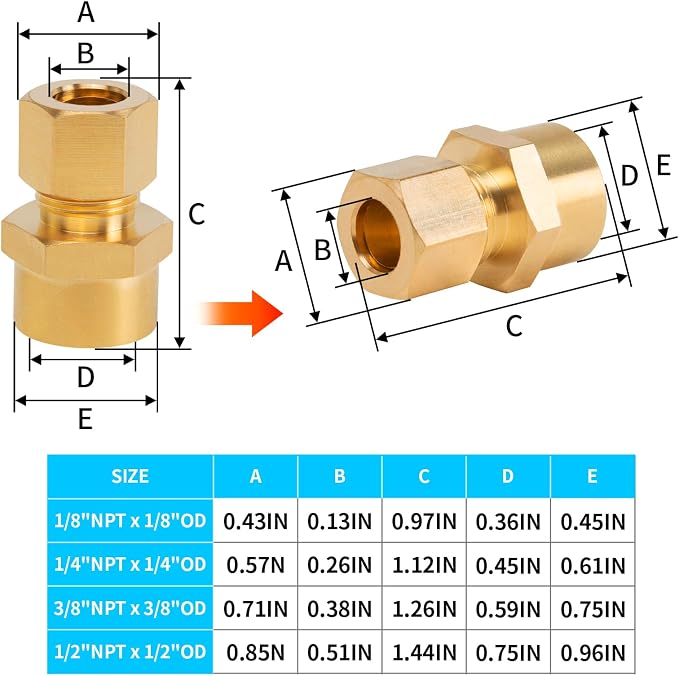

- SIZE - 1/4" Tube OD x 1/4" NPT Female Compression Tube Fitting. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
- MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.
- Use - Suitable for oil, gas, water and other non-corrosive or corrosive pipeline systems, temperature and pressure resistance, good sealing and repeatability, no need for welding and flaring tools, easy disassembly, installation and maintenance, etc.
- WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

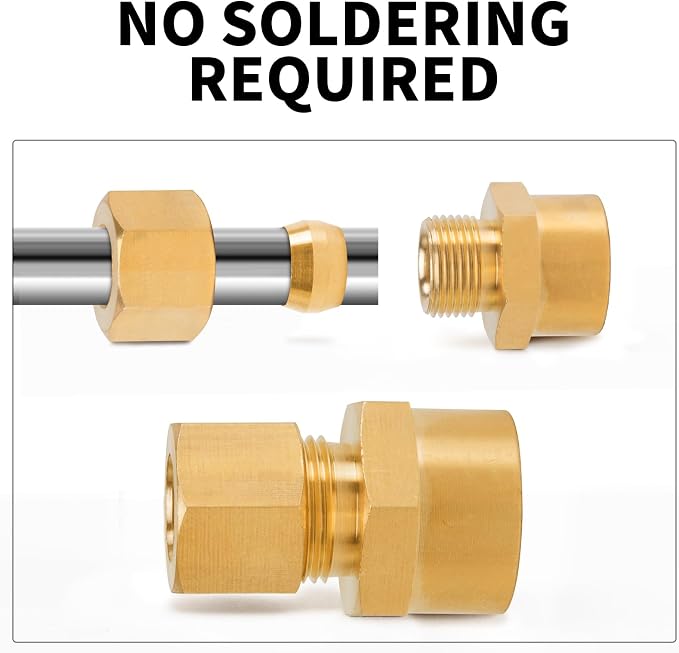

- WORKING PRINCIPLE - Compression Tube Fitting is to compress the ferrule by thread interlocking, and the two ends of the inner diameter of the ferrule tightly wrap the tube due to radial shrinkage, which plays a sealing role and realizes the sealing and tightening effect between the joint and the tube.
Why Choose the VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting
What distinguishes the ChillWaves Brass Compression Tube Fitting, 1/4" OD x 1/4" NPT Female Compression Union Connector(10-PACK) is the combination of well-made design and size tube. Users benefit from reliable performance, making it a strong pick among pipe fittings options.
Best For
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is best suited for: oil.
Quick Summary
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is a Pipe Fittings product by VisittheCHILLWAVES. Size: 1/4" OD x 1/4" FNPT. Material: Brass. Brand: ChillWaves. Color: Yellow. Connector Type: Union. Price: $25.48.
Product Specifications
| Specification | Details |
|---|---|
| Size | 1/4" OD x 1/4" FNPT |
| Material | Brass |
| Brand | ChillWaves |
| Color | Yellow |
| Connector Type | Union |
| Exterior Finish | Brass |
| Thread Type | NPT |
| Number of Pieces | 10 |
| Set Name | 10-Piece Brass Compression Tube Fitting Set |
