Product Overview
Practical, well-made, and built around everyday convenience, the ChillWaves Brass Compression Tube Fitting, 3/8" OD x 1/4" NPT Male Compression Union Connector(10-PACK) is a strong pick for practical situations. Built with Brass, measuring 3/8" OD x 1/4" MNPT, weighing 1.6 ounces, available in Yellow. Notable features include size tube and tube od, contributing to its value-driven character.
Key Features

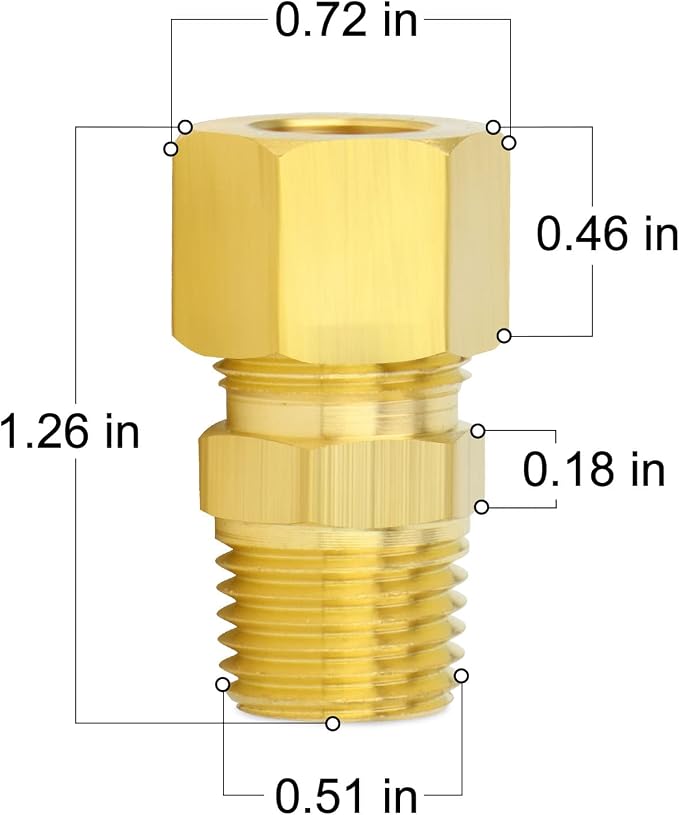

- SIZE - 3/8" Tube OD x 1/4" NPT Male Compression Tube Fitting. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.

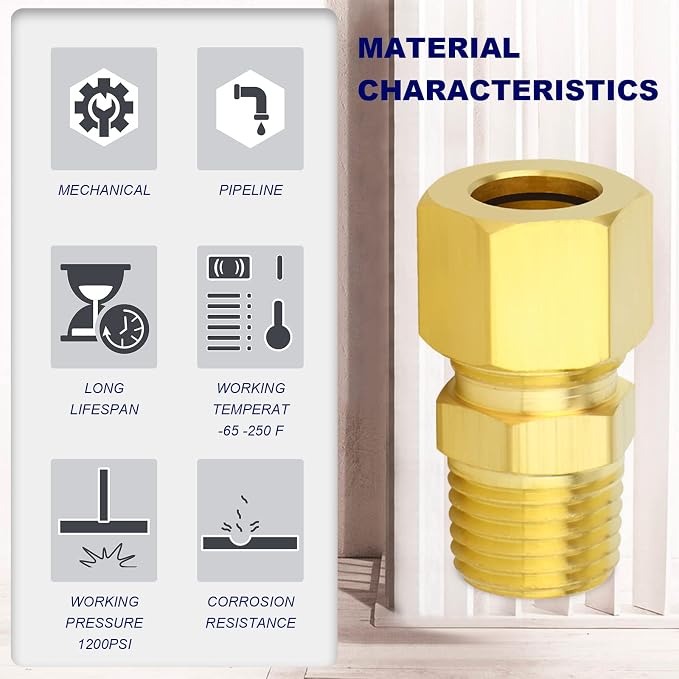

- MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.

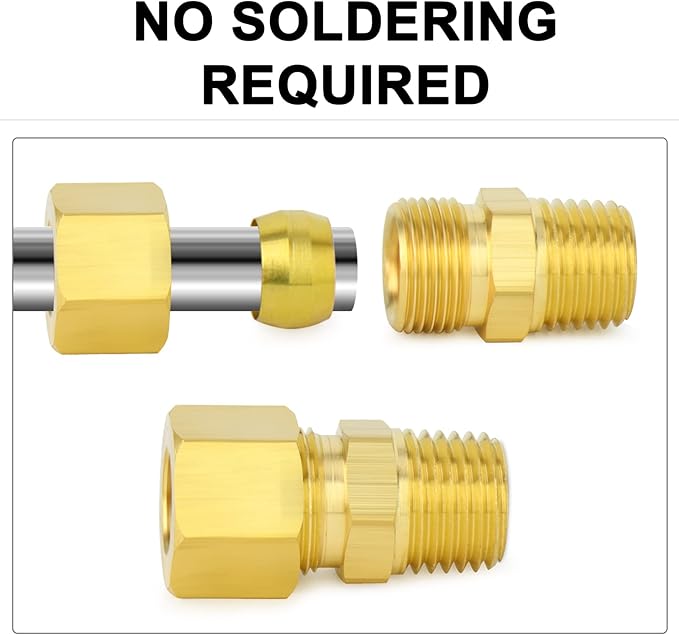

- USE - Suitable for oil, gas, water and other non-corrosive pipeline systems, temperature and pressure resistance, good sealing and repeatability, no need for welding and flaring tools, easy disassembly, installation and maintenance, etc.
- WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

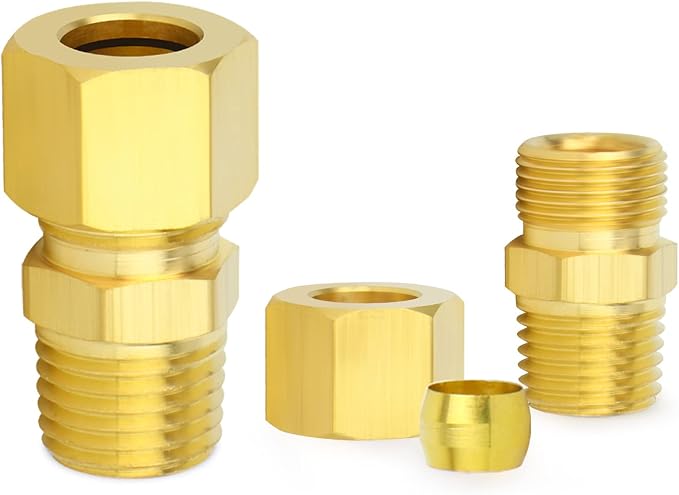

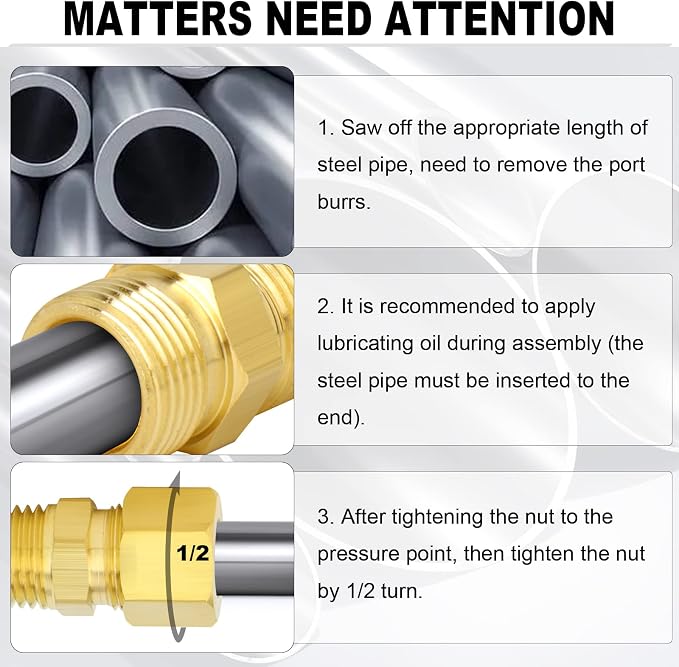

- WORKING PRINCIPLE - Compression Tube Fitting is to compress the ferrule by thread interlocking, and the two ends of the inner diameter of the ferrule tightly wrap the tube due to radial shrinkage, which plays a sealing role and realizes the sealing and tightening effect between the joint and the tube.
Why Choose the VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting
The ChillWaves Brass Compression Tube Fitting, 3/8" OD x 1/4" NPT Male Compression Union Connector(10-PACK) combines size tube with time-tested build quality, giving users satisfying experience they can rely on across pipe fittings situations.
Best For
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is best suited for: oil.
Quick Summary
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is a Pipe Fittings product by VisittheCHILLWAVES. Size: 3/8" OD x 1/4" MNPT. Material: Brass. Brand: ChillWaves. Color: Yellow. Connector Type: Union. Price: $23.78.
Product Specifications
| Specification | Details |
|---|---|
| Size | 3/8" OD x 1/4" MNPT |
| Material | Brass |
| Brand | ChillWaves |
| Color | Yellow |
| Connector Type | Union |
| Thread Size | 3/8'' OD x 1/4'' NPT |
| Exterior Finish | Brass |
| Thread Type | NPT |
| Item Weight | 1.6 ounces |

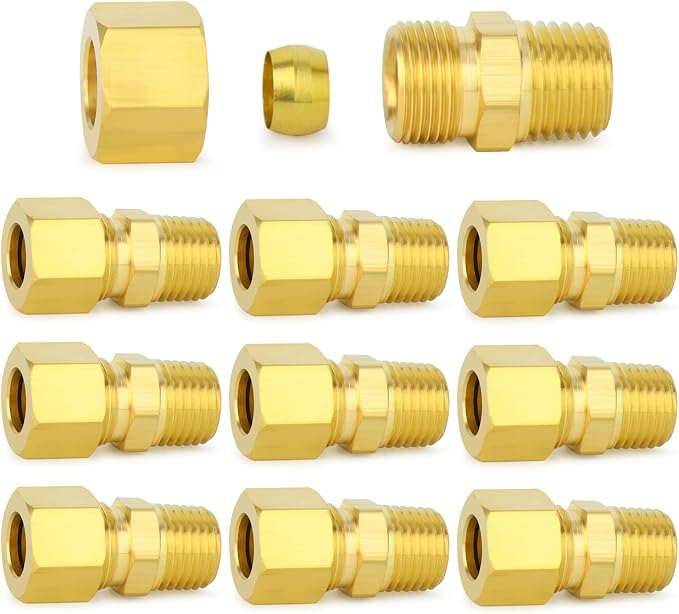

| Number of Pieces | 10 |
