Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel

Product Overview

The Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel Construction, Satin Nickel Finis – Backset, 1/4” Max Square Spindle - Reversible Latch Bolt (Single Pack) represents a precision-machined approach to repair tasks, delivering easy installation consistently. Made with Metal, measuring 0.88 x 3.38 x 5.5 inches. Notable features include replace antique and antique mortise, contributing to its corrosion-resistant character.

Key Features

• REPLACE ANTIQUE MORTISE LOCK SETS – The vintage look of the Prime-Line Mortise Lock Assembly Kit is a great match for the old lock sets found in period homes, used with antique/ vintage door hardware

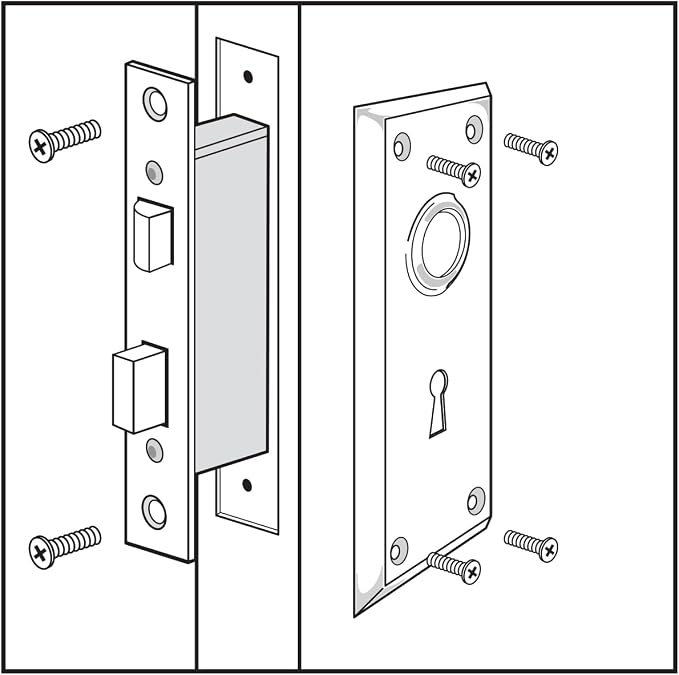

• INSTALLATION – The mortise lock replaces a broken lock (1/2 inch width, 3 inch depth and 3-9/16 inch length) and has a 2-3/8 inch backset with a 9/32 inch square spindle drive that accepts a maximum spindle size of 1/4 inch

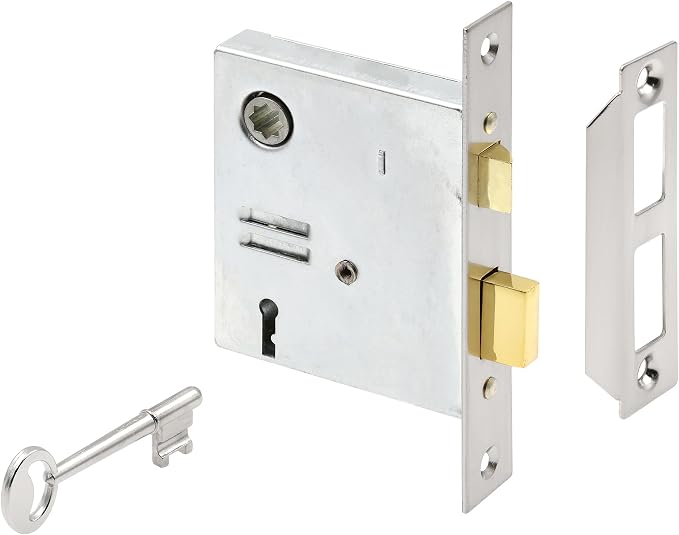

• STEEL WITH SATIN NICKEL FINISH – This mortise lock is constructed from case-hardened steel, features a faceplate with a satin nickel finish, and includes a latch and deadbolt strike with fasteners and two skeleton-style keys

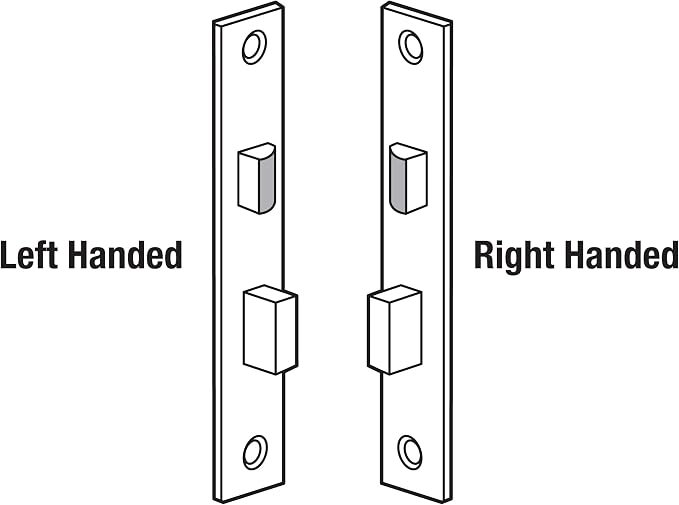

• LEFT OR RIGHT-HANDED INTERIOR DOORS – The mortise caselock ships handed (to close in a certain direction) but the latch can easily be reversed for opposite swinging doors
• INSTALLATION TIP – Although the square drive on the latch has a 9/32 inch opening, it will only accommodate 1/4 inch square spindles

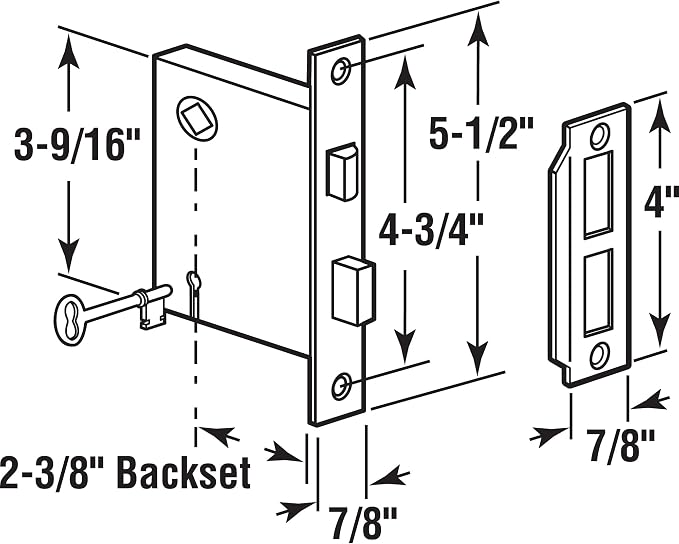

• NOTE - Please refer to the line art drawing for all dimensions and compare to your needs before purchasing (Not Universal)

Why Choose the Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel Construction

With replace antique and mortise lock, the Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel Construction, Satin Nickel Finis – Backset, 1/4” Max Square Spindle - Reversible Latch Bolt (Single Pack) achieves reliable holding power that others in the deadbolts category often miss.

Best For

The Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel Construction is best suited for: Weather Resistant.

Quick Summary

The Prime-Line E 22945 Vintage Style Indoor Mortise Lock Assembly Kit – Cast Steel Construction is a Deadbolts product by Prime-Line. Brand: PRIME-LINE. Special Feature: Weather Resistant. Lock Type: Mortise Lock. Item dimensions L x W x H: 0.88 x 3.38 x 5.5 inches. Material: Metal. Price: $32.28.
