U.S. Solid 1/2" Motorized Ball Valve

Product Overview

Designed thoughtfully for daily workouts, the U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-WIRE Control with Open/Closed Signal Output pairs flexible build with consistent reduced injury risk. Constructed using Brass, measuring 1/2 inches. Notable features include inch npt and npt full-port, contributing to its shock-absorbing character.

Key Features

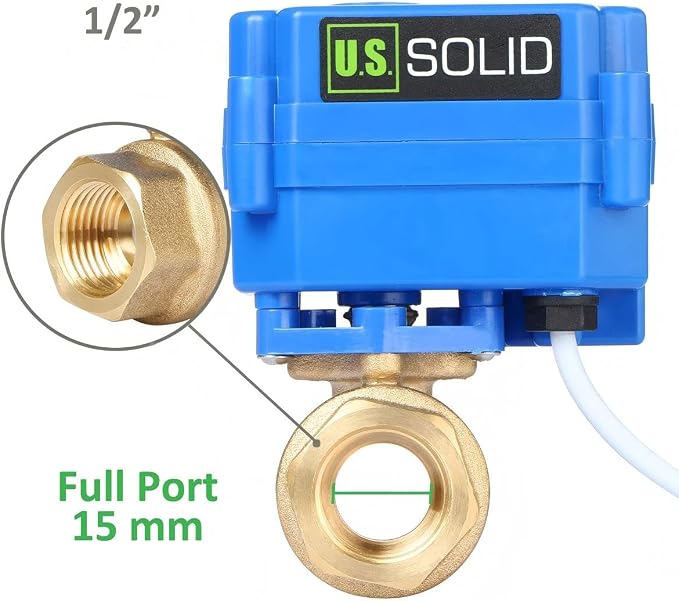

• The 1/2 inch NPT full-port brass valve has a 15 mm bore for full flow with minimal pressure drop on water, air, oil, and gas lines; the brass body contains lead and is not for potable or drinking water
• Runs on 9-24 V DC at 5 W and drives fully open or closed in 6 to 8 seconds with 6 Nm of torque; the motor draws power only while moving, so after reaching position its low power draw helps reduce heat buildup

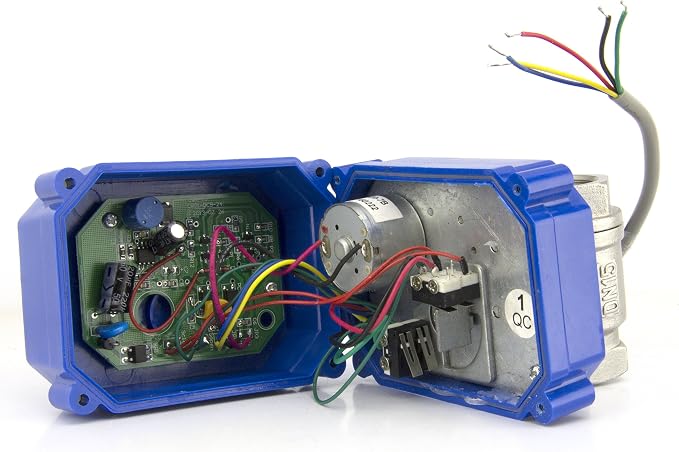

• Yellow and blue wires drive open and close; removing power holds valve position; green/black and red/black signal wires connect to your PLC, controller, or panel to show whether the valve is open or closed
• Ships in the closed position and opens only when energized, keeping lines shut by default for automatic isolation and leak control in unattended irrigation, HVAC, and water transfer systems
• The IP65 enclosure resists dust and water spray, and PTFE and silicone seats with a brass body handle up to 1.0 MPa (145 psi) for a rated 80,000 to 100,000 cycles of reliable service

Why Choose the USSolid U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve

What distinguishes the U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-WIRE Control with Open/Closed Signal Output is the combination of lightweight design and inch npt. Users benefit from reliable durability, making it a strong pick among ball valves options.

Best For

Geared toward daily workouts, the U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-WIRE Control with Open/Closed Signal Output brings lightweight build quality and consistent reduced injury risk.

Quick Summary

The USSolid U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve is a Ball Valves product by USSolid. Material: Brass. Brand: U.S. Solid. Exterior Finish: Brass. Inlet Connection Size: 1/2 inches. Inlet Connection Type: National Pipe Tapered. Price: $65.26.

Product Specifications
