U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel

Product Overview

A lightweight take on daily workouts, the U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve delivers reduced injury risk where it matters. Engineered using Stainless Steel, measuring 1/4 inches. Notable features include nsf certified and certified 304, contributing to its durable character.

Key Features

• NSF Certified 304 Stainless Steel Body: Valve body and stem are made from NSF-certified SS304, a lead-free alloy rated safe for potable water, home brewing, hydroponics, and aquaponics — ensuring no contamination risk in food-contact or drinking water applications.
• Fail-Safe Normally Closed Operation: This N.C. electric ball valve stays shut when unpowered, making it a reliable automatic shut-off for leak prevention, emergency water control, and irrigation systems where flow must stop during power loss.

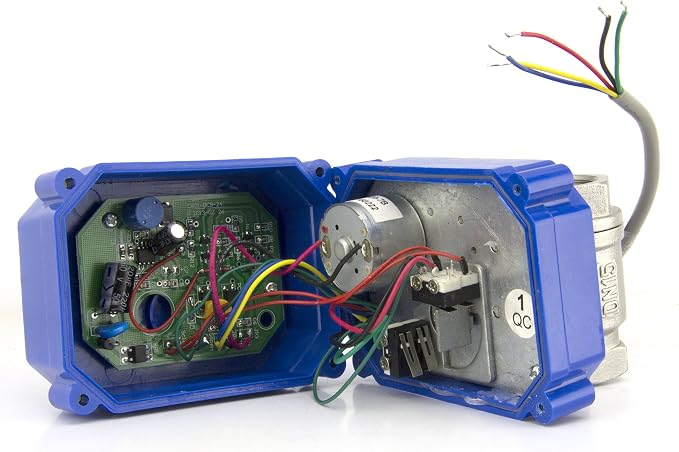

• 5-Wire Control with Auto Power Cutoff: The 5-wire interface supports 9-24V DC systems and includes a built-in internal limit switch that cuts power once the valve reaches fully open or closed position, preventing overheating — unlike continuously energized solenoid valves.

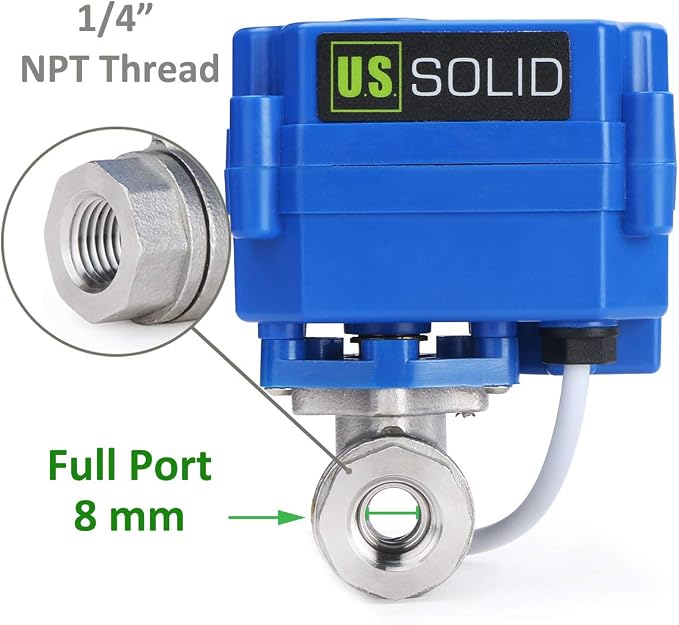

• 1/4 in NPT Full Port Design with IP65 Enclosure: Full port bore matches pipe diameter for maximum flow with minimal pressure drop. IP65-rated actuator casing resists dust ingress and water spray from all directions, suitable for outdoor and damp environments.
• Specs and Compatibility: Valve opens or closes in 6-8 seconds. Max pressure 1.0 MPa, max torque 6 N·m, max power 5W, flow medium temperature 0-100 degrees C, cycle lifespan 80,000-100,000. Ball seat: PTFE. Seal: EPDM. Compatible with Arduino and PLC automation.

Why Choose the USSolid U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve

The U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve demonstrates ergonomic engineering with practical features like nsf certified, leading to reliable durability that holds up over time.

Best For

The USSolid U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve is best suited for: outdoor and damp environments.

Quick Summary

The USSolid U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve is a Ball Valves product by USSolid. Material: Stainless Steel. Brand: U.S. Solid. Exterior Finish: Stainless Steel,Steel. Inlet Connection Size: 1/4 inches. Inlet Connection Type: Full port. Price: $65.77.
