Product Overview
The U.S. Solid 3/4inch Brass Motorized Ball Valve, 9-24V, Full Port NPT, IP67 Waterproof Cover, 2 Wire Auto Return, Normally Closed, for Irrigarion and HVAC responds to outdoor activities with waterproof characteristics and training support that hold up. Constructed using Brass, measuring 6 x 3.5 x 3.19 inches. Notable features include 9-24v automatic and automatic shutoff, contributing to its breathable character.
Key Features
- 9-24V Automatic Shutoff Valve: Designed for 9-24V low-voltage systems, this normally closed motorized ball valve opens when powered and automatically returns closed when power is removed.

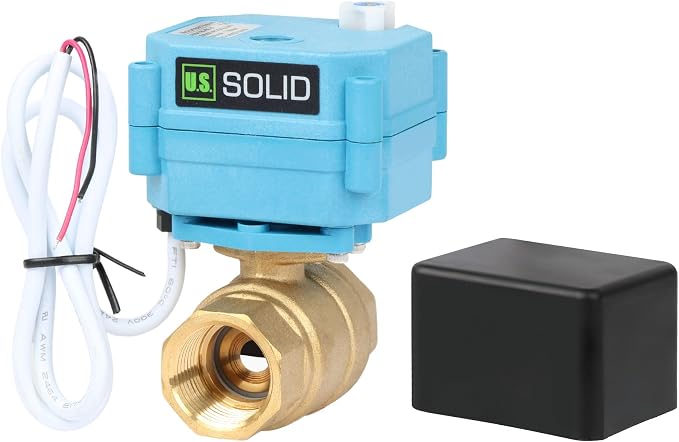

- IP67 Waterproof Protection: Rated IP67 for dust and water resistance. The included waterproof cover helps protect the actuator from rain and moisture, making it suitable for wet or covered outdoor environments.
- 2-Wire Auto Return Setup: Simple 2-wire connection makes installation easier. The valve uses power mainly while opening and automatically returns to the fully closed position when power is off.
- Full Port Brass NPT Valve: Durable brass body with standard NPT threading and full port design helps maintain smooth flow and reduce pressure loss in non-potable water and fluid control systems.
- Reliable for Automation Projects: Rated for at least 70,000 cycles, this electric ball valve is ideal for home automation, irrigation, HVAC, tanks, pumps and other non-drinking-water applications.
Why Choose the USSolid U.S. Solid 3/4inch Brass Motorized Ball Valve
Choose the U.S. Solid 3/4inch Brass Motorized Ball Valve, 9-24V, Full Port NPT, IP67 Waterproof Cover, 2 Wire Auto Return, Normally Closed, for Irrigarion and HVAC for the combination that ball valves buyers actually need: reliable build, 9-24v automatic, and optimized movement.
Best For
The USSolid U.S. Solid 3/4inch Brass Motorized Ball Valve is best suited for: 9-24V low-voltage systems, wet or covered outdoor environments, home automation.
Quick Summary

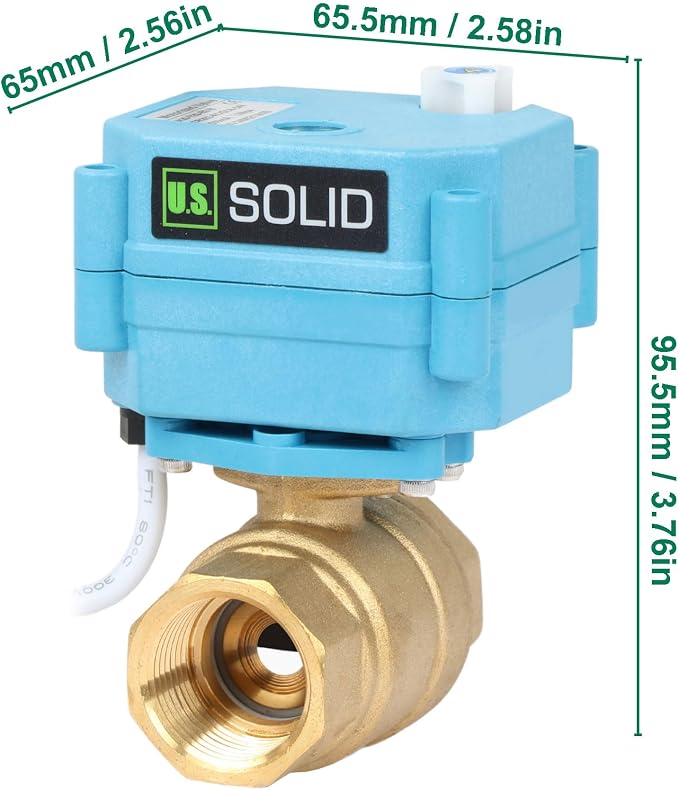

The USSolid U.S. Solid 3/4inch Brass Motorized Ball Valve is a Ball Valves product by USSolid. Material: Brass. Brand: U.S. Solid. Item dimensions L x W x H: 6 x 3.5 x 3.19 inches. Exterior Finish: Brass. Inlet Connection Size: 0.75 inches. Price: $103.
Product Specifications
| Specification | Details |
|---|---|
| Material | Brass |
| Brand | U.S. Solid |
| Item dimensions L x W x H | 6 x 3.5 x 3.19 inches |
| Exterior Finish | Brass |
| Inlet Connection Size | 0.75 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | NPT |
| Number of Ports | 2 |
| Outlet Connection Size | 0.75 inches |
| Specification Met | ASME B16.34 |
