Product Overview
The U.S. Solid Motorized Ball Valve – 3/4" 316 Stainless Steel, IP67 Waterproof, 9–24V AC/DC, Full Port, 2-Wire Auto-Return, Normally Closed, Electric Valve for HVAC, Water, Oil, and Gas responds to marathon training with sweat-wicking characteristics and optimized movement that hold up. measuring 4.5 x 3.5 x 3 inches. Notable features include 316 stainless and stainless steel, contributing to its flexible character.
Key Features
- The 316 stainless steel body resists corrosion better than 304 for saltwater, pool, water treatment, and chemical dosing lines; the full-port 20 mm bore with an FKM seat gives full flow
- Opens when energized and automatically returns to the fully closed position on power loss, shutting off the line for leak and flood prevention in unattended irrigation, HVAC loops, and automated systems
- Once fully open, an internal limit switch cuts the motor, drawing minimal current with little heat for long holds; a cool-running swap for solenoids in solar and off-grid setups
- The low-voltage supply suits solar, battery, PLC, and Arduino control in greenhouses and rainwater harvesting; rated to a max 1.0 MPa (145 psi) for air and water
- A manual override turns the valve by hand during a power outage and a visual position indicator shows open or closed; IP67 rated for outdoor, washdown, and marine installs, 70,000 cycles
Why Choose the USSolid U.S. Solid Motorized Ball Valve – 3/4" 316 Stainless Steel
The U.S. Solid Motorized Ball Valve – 3/4" 316 Stainless Steel, IP67 Waterproof, 9–24V AC/DC, Full Port, 2-Wire Auto-Return, Normally Closed, Electric Valve for HVAC, Water, Oil, and Gas delivers on three fronts: high-performance build, 316 stainless, and long-lasting use. This combination makes it suited for serious ball valves use.
Best For
The U.S. Solid Motorized Ball Valve – 3/4" 316 Stainless Steel, IP67 Waterproof, 9–24V AC/DC, Full Port, 2-Wire Auto-Return, Normally Closed, Electric Valve for HVAC, Water, Oil, and Gas is best suited for marathon training, where its high-performance build supports optimized movement.
Quick Summary

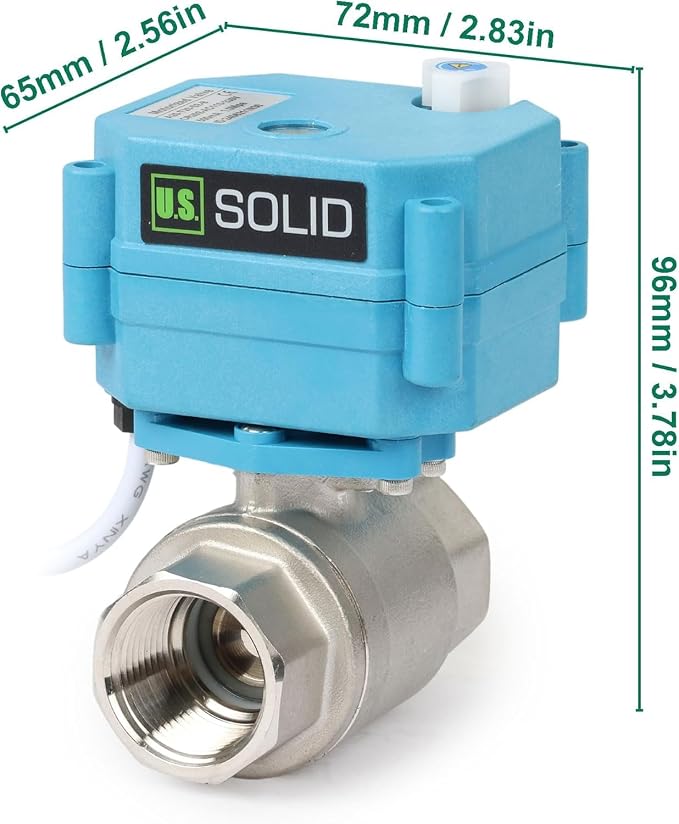

The USSolid U.S. Solid Motorized Ball Valve – 3/4" 316 Stainless Steel is a Ball Valves product by USSolid. Brand: U.S. Solid. Item dimensions L x W x H: 4.5 x 3.5 x 3 inches. Unit Count: 1 Count. Price: $134.11.
Product Specifications
| Specification | Details |
|---|---|
| Brand | U.S. Solid |
| Item dimensions L x W x H | 4.5 x 3.5 x 3 inches |
| Unit Count | 1 Count |
